Products

Position:Home > Products > Auxiliary Equipment

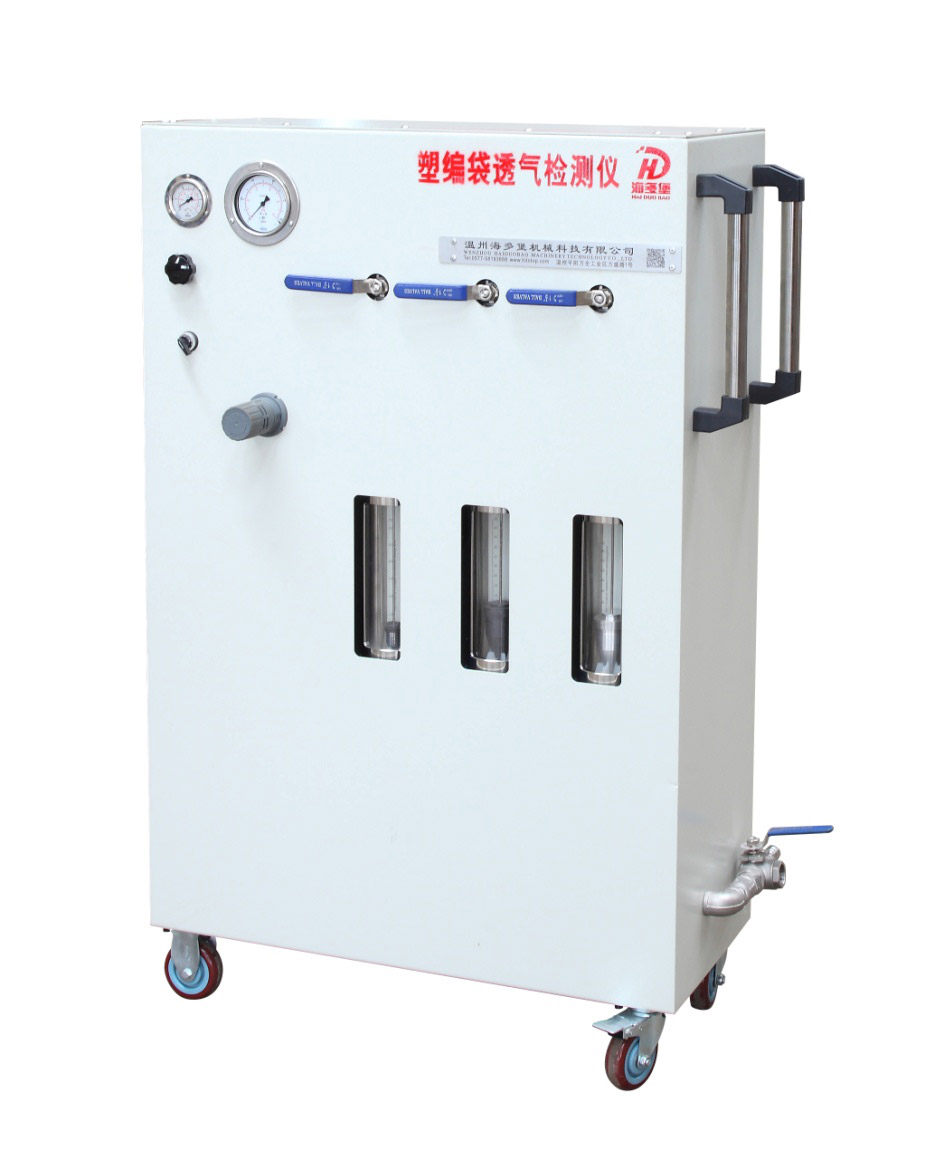

Valve pocket breather detector

First, use:

It is used to detect the air permeability of the micropore valve pocket for stable filling. (The universal reference standard air permeability is 120m3/h. Because the pressure of each manufacturer's filling machine is different and not adjustable, it can be adjusted according to the actual situation.)

Second, equipment performance parameters:

Pressure range	1～8000Pa（80 mbar）
Measurable air permeability	0.65～160 m3/h
Measurement error	≤±2%
Intake air pressure	≤16 bar
Main gauge range	0～100 mbar
Secondary pressure gauge	0～1.0 bar
Air flow meter range 1	0.65～6.5 m3/h
Air flow meter range 2	5～50 m3/h
Air flow meter range 3	16～160 m3/h
Main air pressure valve quantitative adjustment	0.5～10 bar
Secondary pneumatic valve quantitative adjustment	0～0.5 bar
Intake hose length	3 m
Intake hose connector	DN25 internal thread
Valve mouth	Common size 3
Overall size	900×400×1450 mm

Third, the main configuration of the equipment:

	Domestic accessories version	Imported parts version
Number of nozzles	Valve pocket: 5 sizes each Bottom cement bag: 2 special sizes	Valve pocket: 5 sizes each Bottom cement bag: 2 special sizes
Pressure gauge	Domestic (Guangzhou)	German brand
Air flow meter	Domestic brand (Changzhou)	German brand
Main air valve	Italian brand	Italian brand
Secondary air valve	Japanese brand	Japanese brand
#Description	(problem to be produced)	(normal shipment)
Tax-included price Does not include shipping and installation	3.8萬(wàn)	5.5萬(wàn)

Prev:This page is the first page

Next:This page is the last page
